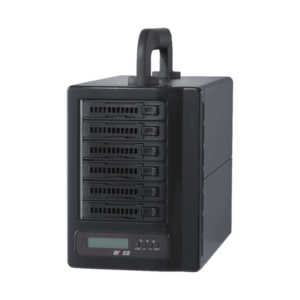

Thunderbolt 3 Desktop Storage (ARC-8050T3-6M)


Out of stock



ARC-8050T3-6M is the most complete 12Gb/s SAS 6(M)-bay Thunderbolt™ 3 desktop storage with RAID control capabilities solution for both PC and Mac. ARC-8050T3-6M incorporated on-board RAID-On-Chip and ECC SDRAM memory to deliver true high performance hardware RAID protection against drive failure. This combination helps to provide a high performance storage device perfect for the video editor working with Real time multi-stream HD and 4K workflows.


Thunderbolt™ 3 brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all – delivering the fastest, most versatile connection to any dock, display, or data device. ARC-8050T3-6M is equipped with dual Thunderbolt 3 ports for connecting to any Thunderbolt 3-enabled host and offers an additional Thunderbolt 3 port for daisy-chaining other peripherals. The Thunderbolt daisy-chaining allows connection of up to six devices, so customers can connect ARC-8050T3-6M for massive amounts of video storage with a single Thunderbolt connection to their host computer.


  • High performance 40Gbps Thunderbolt 3 interface
  • Support simultaneous 4K in/output workflow
  • Dual Thunderbolt 3 ports for daisy-chaining
  • 1 x SFF8644 miniSAS expansion port for connecting JBOD for storage capacity scale up
  • EFI supported for macOS multi-boot
  • Configuration by the Thunderbolt/LAN port/LCD
  • 1m 40Gb/s active Thunderbolt™ 3 (USB-C) cable included
  • Advanced configuration for video optimized performance settings
  • Delivers enterprise-class data protection and security
  • Controller-level hardware encryption
  • Intelligent power On/Off function for data integrity
  • Hard drive firmware update all at once

Drive Bays 6(M) x SAS 12 Gb/s
Disk Support 2.5″ 12 Gb/s SAS/SSD or 6 Gb/s SAS/SATA/SSD
Cache Memory 2 GB DDR3 1866
Cooling 1 x 2700 rpm fans
Power Supply 135 W
Connections 2 x Thunderbolt 3
1 x DisplayPort
1 x SFF8644 miniSAS expansion port for connecting JBOD for storage capacity scale up
RAID Level 0, 1, 10, 3, 5, 6, 30, 50, 60, Single Disk, JBOD
Supported Operating Systems Windows 8 or later
Mac OS X 10.12 or later
Operating Temperature 32 to 95°F / 0 to 35°C
Operating Humidity 5 to 95% (non-condensing)
Dimensions (W x H x D) 4.84 x 6.51 x 9.11 in (123 x 165.6 x 232 mm)
Weight 8.0 lbs / 3.6 Kg

Powered by AC or DC power
