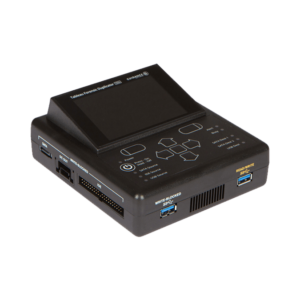

The Tableau Forensic Duplicator was built to excel in both field and lab environments. It is a full-featured, fully-forensic duplicator that offers the ideal combination of easy operation, reliability, and ultra-fast forensic imaging of hard disks and solid-state-drives. Compatible with: TC4-8-R2, TKDA7-2, TDP6, TP5, TC2-8-R2, TC5-8-R2, TC3-8, TC6-8, TC8, TC4-20-R2
Connectors: Source Side | |
| SATA | One SATA signal connector |
| USB 3.0 | One USB 3.0 Standard-A connector |
| IDE | One IDE signal connector |
| Drive Power | One 3M-style 4-pin power connector for the SATA or IDE drive |
Connectors: Destination Side | |
| SATA | Two SATA signal connectors |
| USB 3.0 | One USB 3.0 Standard-A connector |
| Drive Power | Two 3M-style 4-pin power connectors for the SATA drive |
Connectors: Misc | |
| USB | One Standard-A USB 2.0 port for USB printer, flash drive, or keyboard |
| One Mini-B USB 2.0 port for firmware updates |
| DC Input | One barrel connector for use with Tableau TP5 power supply |
User Interface | |
| LCD | 3.5 in. Graphic LCD (320 x 480 resolution) |
| Buttons | Two contextual “soft buttons” located under the LCD, five navigation buttons and one power on/off button |
Status LEDs | |
| DC Power In | Power is available at power source |
| Power | TD2u is powered on |
| SATA Source Detect | Flashing: detecting drive |
| Steady: drive detected |
| IDE Source Detect | Flashing: detecting drive |
| Steady: drive detected |
| USB Source Detect | Flashing: detecting drive |
| Steady: drive detected |
| SATA Destination 1 Detect | Flashing: detecting drive |
| Steady: drive detected |
| SATA Destination 2 Detect | Flashing: detecting drive |
| Steady: drive detected |
| USB Destination Detect | Flashing: detecting drive |
| Steady: drive detected |
| Busy | Source or destination drive activity |
| Alert | Flashing: activity paused, user response required |
| Steady: read/write failure encountered |
| Compatibility | |
| IDE Devices | Parallel ATA hard drives with Logical Block Addressing (LBA) support |
| USB Devices | USB 3.0, 2.0, and 1.1 devices |
| Power Supply | Tableau model TP4 or TP5 |
| SATA Devices | SATA I, II, or III hard drives |
Physical / Environmental | |
| Storage Temperature Range | -40 to 70 degrees C |
| Operating Temperature Range | 0 to 40 degrees C ambient (room temperature) |
| Power | 11 Watts Typical Operating (Not Including Drive Power) |
| DC Input | 13VDC (min) to 36VDC (max) |
| DC Output | +5/12V @2A (spin-up) |
| Dimensions | 5.65 in. (L) x 5 in. (W) x 2.25 in. (H) |
| Weight | 11.3oz (320g) |
| DC Output (per drive) | +5/12V @1A (continuous) |
| Relative Humidity | Up to 90% (non-condensing) |
